Gearbox Actuator Air Pressure Limiting Valve for DAF, IVECO, MAN & Renault Trucks

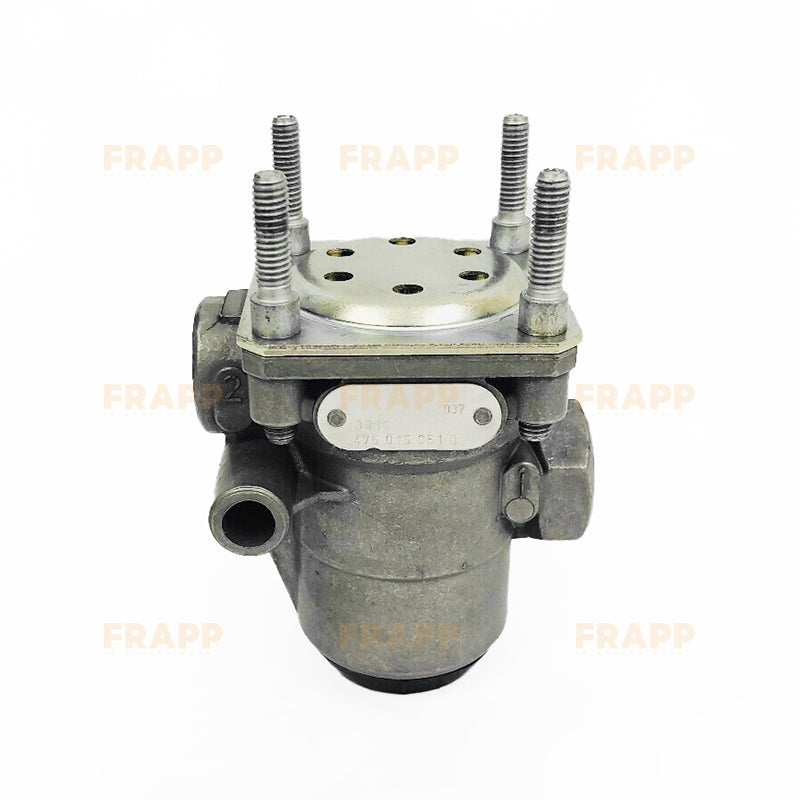

Restore correct air pressure inside the gearbox actuator with this Gearbox Actuator Air Pressure Limiting Valve. The die-cast valve body carries its name plate and mounting studs, replacing the original pressure-limiting valve on ZF AS-Tronic units.
📌 Key Highlights
- Complete Valve Assembly: Die-cast body with flat top cover on four threaded studs and two side air ports, ready to bolt on.
- Correct Pressure Control: Limits actuator pressure so shifts stay smooth rather than harsh.
- OE-Equivalent Fit: Direct replacement for WABCO 4750150610.
🔄 Cross References
To help you ensure correct fitment, this part can replace or is equivalent to the following OEM and aftermarket part numbers:
- WABCO Material Ref: 4213559312, 4750150610
- DAF / PACCAR Original OE: 1636527
- MAN Original OE: 81326906016, 81.32690-6016
- IVECO Original OE: 42541044
- Renault Trucks Original OE: 5001867251
- VDL Original OE: 20330513
- Aftermarket Cross Reference: S4213559312 (Meritor); also badged by Kenworth and Peterbilt under 4213559312
🚚 Vehicle Fitment
| Brand | Model / Series | Year Range | Notes |
|---|---|---|---|
| DAF / IVECO / MAN / Renault Trucks / VDL | ZF AS-Tronic (AS Tronic, MID, TC Tronic) | — | Repairs gearbox actuators 4213550110 / 0117 / 0120 / 0140 / 0150 / 0220 / 0230 |
Year range could not be confirmed from manufacturer sources — confirm your gearbox actuator part number before ordering.
⚙️ Technical Specifications
- Product Type: Gearbox Actuator Pressure Limiting Valve
- Application: ZF AS-Tronic gearbox actuator
- Material: Die-cast aluminium body
- Condition: 100% Brand New Premium Aftermarket Replacement
