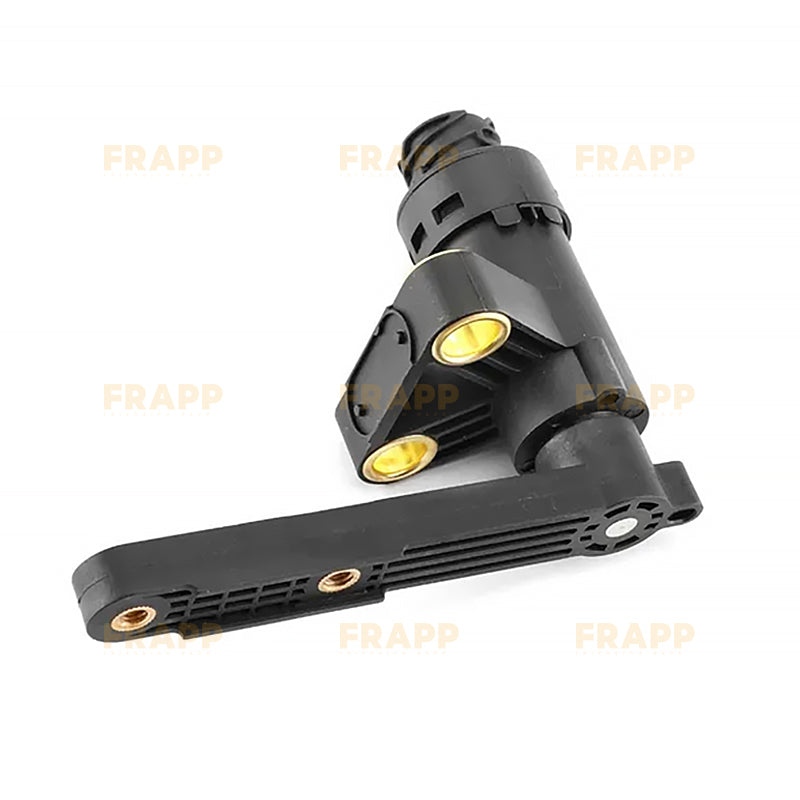

Heavy Duty ECAS Suspension Ride Height Level Sensor for European Trucks and Trailers
Maintain continuous chassis level calibration, maximum payload balance, and optimal ride comfort with this premium heavy-duty ECAS Height Level Sensor. Meticulously engineered in strict compliance with original equipment manufacturer (OEM) technical standards, this high-precision inductive rotary sensor with a straight lever tracks minute clearances between the axle housing and truck frame, outputting real-time data to the central suspension ECU to govern air bellows pressure regulation loops.
📌 Key Highlights
- Full Service Inductive Precision: Utilizes advanced integrated inductive sensing technology paired with a factory-calibrated straight lever arm to deliver zero-lag, stable linear data loops, completely eliminating dashboard electronic suspension fault lights.
- Optimal Heavy-Duty Protection: Encased in a premium-grade, temperature-resistant polymer housing rated at IP 6K9K to withstand continuous driving rain, corrosive highway salt, and heavy under-chassis fleet vibrations.
- Precise Fitment: Crafted according to exact original factory blueprint wire routings with a standard Bayonet DIN 72585 plug connector interface to prevent connection short-circuits and assure seamless drop-in calibration.
🔍 Cross References
To help you ensure correct fitment, this part can replace or is equivalent to the following OEM part numbers:
- WABCO Original Reference: 4410501000, 441 050 100 0
- Scania Original OE (VERIFIED): 1934584
- DAF / PACCAR Original OE (VERIFIED): 1365935
- Renault Trucks Original OE (VERIFIED): 5010422344
⚙️ Technical Specifications
- Product Type: ECAS / ELC Anti-Lock Electronic Air Suspension Ride Height Position Sensor
- Technology Architecture: High-Sensitivity Inductive Matrix with Straight Lever Arm
- Operating Voltage / Current: 12V Nominal Fleet System / 90 mA Rated Current
- Electrical Connector Type: Bayonet DIN 72585 plug connector integration
- Operational Measurement Range: High Sensitivity Core up to ±50° Angular Calibration
- Protection Class Rating: IP 6K9K Moisture Sealed Matrix
- Condition: 100% Brand New Aftermarket Replacement
