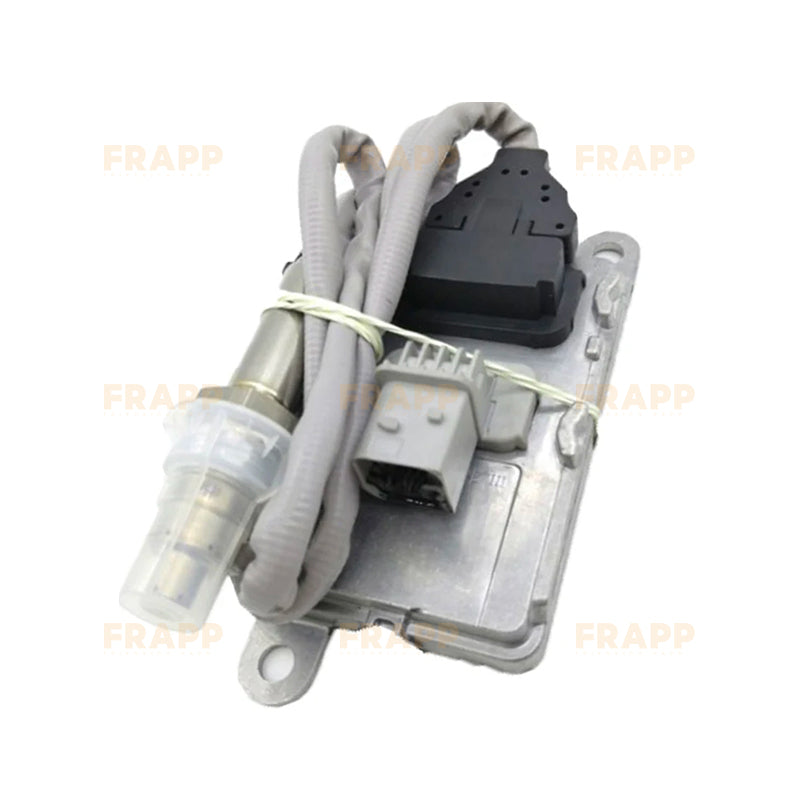

24V Heavy Duty Exhaust NOx Sensor for Scania P, G, R, S & T Series Trucks (Euro 6 - Upstream)
Maintain precise emissions compliance, prevent sudden engine derate, and optimize AdBlue/DEF fluid dosing with this premium 24V Pre-Cat Exhaust NOx Sensor. Specially engineered for Scania commercial vehicles equipped with Euro 6 SCR emissions control systems, it continuously measures raw nitrogen oxide concentrations at the inlet stream and transmits real-time data to the Engine Control Unit (ECU).
📌 Key Highlights
- Precision Ceramic Sensing Element: Advanced zirconia ceramic probe provides exceptional accuracy, rapid response time, and strong resistance to thermal shocks and soot contamination.
- 900mm High-Temperature Shielded Harness: Equipped with an extended 900mm heavy-duty protective braided wire sleeve designed to withstand extreme underbody heat and harsh road debris.
- Integrated Micro-Processor Controller: Continental/Vitesco architecture electronic control module converts raw analog probe signals into standardized digital CAN-bus communication data for the Scania ECU.
- Direct OE Drop-In Replacement: Factory-standard M20x1.5 thread pitch, proper wiring length, and a 4-pin sealed electrical connector enable fast plug-and-play installation without wire splicing.
🔄 Cross References
To help you ensure correct fitment, this part can replace or is equivalent to the following OEM and aftermarket part numbers:
- Scania Original OE: 2064768, 2294290, 2247380, 2296800, 2064380
- Continental / Vitesco Ref: 5WK96694A, 5WK96694B, 5WK96694C, 5WK97400, 5WK9 6694A, 5WK9 6694C
⚙️ Technical Specifications
- Product Type: Commercial Vehicle 24V Exhaust NOx (Nitrogen Oxide) Sensor
- Operating Voltage: 24V Heavy-Duty Commercial Electrical System
- Emissions Standard: Euro 6 Compliance
- Mounting Position: Upstream / Pre-SCR Catalyst / Inlet
- Cable Length: Approx. 900 mm
- Thread Size: M20 x 1.5 mm
- Compatible Vehicles: Scania P, G, R, S, T Series Trucks & F, K, N Series Buses (Euro 6 Series)
- Condition: 100% Brand New Premium Aftermarket Replacement
