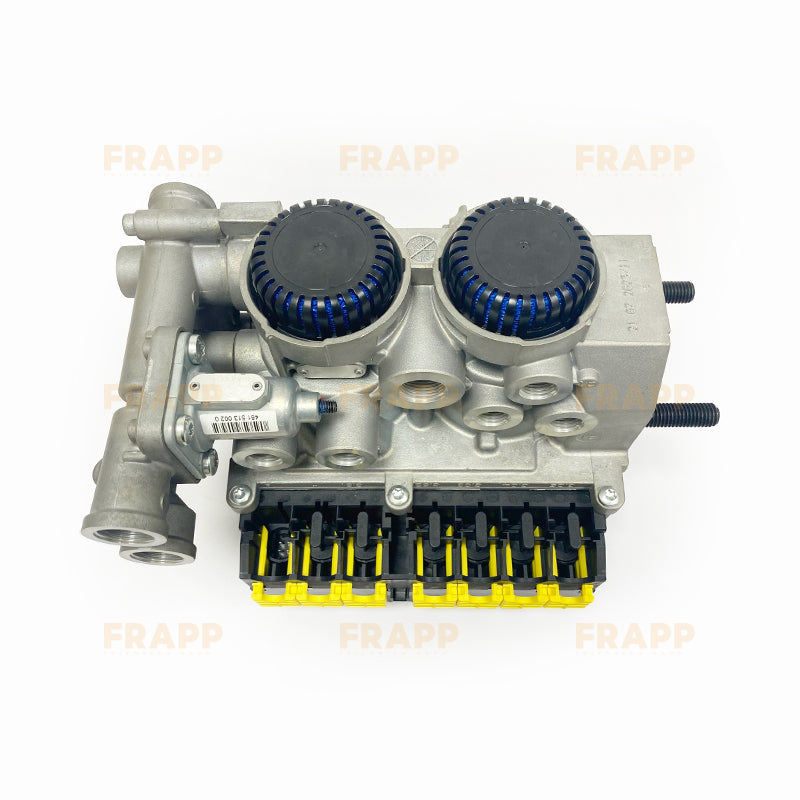

EBS Trailer Modulator 24V (TEBS E for SCANIA System)
Restore optimal ABS/EBS braking performance with this premium EBS Trailer Modulator. Engineered as a central control valve assembly, it features an advanced control valve block, integral dual-modulator valves, a robust multi-socket ECU interface, and integrated delivery pressure sensor ports designed for heavy-duty fleet operations.
📌 Key Highlights
- Official WABCO Reference: Confirmed in the WABCO Customer Centre (INFORM) catalogue as EBS-Trailer Modulator 24V (Generation TEBS E).
- SCANIA Genuine Fitment: Directly replaces and functions identically to SCANIA Factory OE part numbers.
- System Capability: Serves as the core central hub for 2S/2M up to 4S/3M trailer EBS configurations.
- PEM Integration Support: Fully compatible with Pneumatic Extension Modulator (PEM) or Relay Emergency Valve (REV) additions via the integrated ports.
- Stud Mounted: Features standard dual M12 threaded mounting studs and an anodised aluminium alloy body for maximum corrosion resistance, matching OE specifications.
🔄 Cross References & OEM Numbers
To ensure 100% correct fitment, this part replaces or is equivalent to the following OEM and aftermarket part numbers:
- SCANIA OE Number: 1935127
- WABCO Part Number: 4801020640, 480 102 064 0
- Dealer Code: WES480.102.064.0 (Braem)
- Related Variants — Check VIN/Configuration: 4801020630, 4801020610 (Different generation/software parameters, NOT universally interchangeable)
- GTIN: 7895851072213
🚚 Vehicle Fitment
| Vehicle / Chassis Application | Compatible Series / Year | System Family | Notes / Requirements |
|---|---|---|---|
|
SCANIA Trucks & Coupled Trailers (O3 / O4 Category Semi-Trailers) |
Suits Scania-linked fleet applications & European heavy transport builds | WABCO TEBS E (Standard/Premium) | Central 24V EBS modulator. Diagnostics & Parameterisation required post-installation to sync with Scania tractor units. |
Note: Software parameters vary by fleet specification. Always verify the 10-digit WABCO number (4801020640) or SCANIA OE number (1935127) on your existing data plate before ordering.
⚙️ Technical Specifications
- Product Type: Central Trailer EBS Modulator Assembly
- Operating Voltage: 24V DC
- Max. Operating Pressure: 8.5 bar to 10.0 bar (Service/Supply brake circuit limits)
- Pneumatic Ports: Standard M22 × 1.5 (Supply/Delivery) & M16 × 1.5 (Control/Sensors)
- Condition: 100% Brand New Premium Aftermarket Replacement
