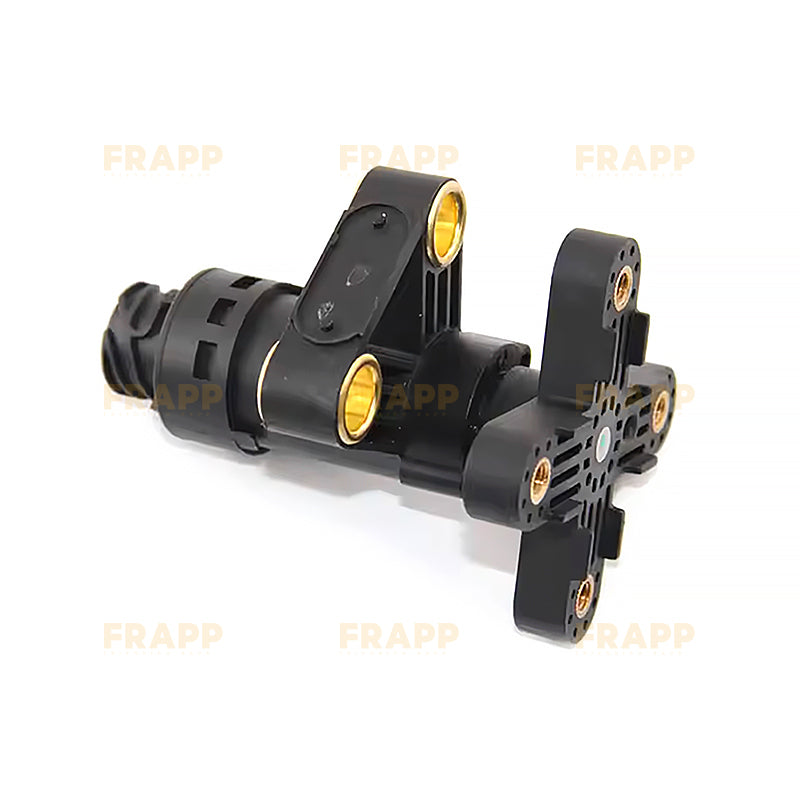

Heavy Duty ECAS Suspension Ride Height Level Sensor for European Trucks
Maintain continuous chassis level calibration, maximum payload balance, and optimal ride comfort with this premium heavy-duty ECAS Height Level Sensor. Meticulously engineered in strict compliance with original equipment manufacturer (OEM) technical standards, this high-precision inductive rotary sensor tracks minute clearances between the axle housing and truck frame, outputting real-time data to the central suspension ECU to govern air bellows pressure regulation loops.
📌 Key Highlights
- Full Service Inductive Precision: Utilizes advanced integrated inductive sensing technology with a Cross Lever configuration to deliver zero-lag, stable linear data loops, completely eliminating dashboard electronic suspension fault lights.
- Optimal Heavy-Duty Protection: Encased in a premium-grade, temperature-resistant polymer housing rated at IP 6K9K to withstand continuous driving rain, corrosive highway salt, and heavy under-chassis fleet vibrations.
- Precise Fitment: Crafted according to exact original factory blueprint wire routings with a standard Bayonet DIN 72585 plug connector interface to prevent connection short-circuits and assure seamless drop-in calibration.
🔍 Cross References
To help you ensure correct fitment, this part can replace or is equivalent to the following OEM part numbers:
- WABCO Original Reference: 4410501210, 441 050 121 0, 4410501200, 441 050 120 0
- Mercedes-Benz Original OE (VERIFIED): 0035422618, A0035422618, 0025426718, A0025426718
- Scania Original OE (VERIFIED): 1934586, 1448082, 2110474
- MAN Original OE (VERIFIED): 81.25937.0040, 81259370040, 36.25937.0000, 36259370000
- IVECO Original OE (VERIFIED): 41200708
- DAF / PACCAR Original OE (VERIFIED): 1528811
⚙️ Technical Specifications
- Product Type: ECAS / ELC Anti-Lock Electronic Air Suspension Ride Height Position Sensor
- Technology Architecture: High-Sensitivity Inductive Matrix with Cross Lever
- Operating Voltage / Current: 12V Nominal Fleet System / 90 mA Rated Current
- Electrical Connector Type: Bayonet DIN 72585-A1-2.1-Sn/K2 PLUG (Code A Layout)
- Operational Measurement Range: High Sensitivity Core up to ±50° Angular Calibration
- Protection Class Rating: IP 6K9K Moisture Sealed Matrix
- Condition: 100% Brand New Aftermarket Replacement
