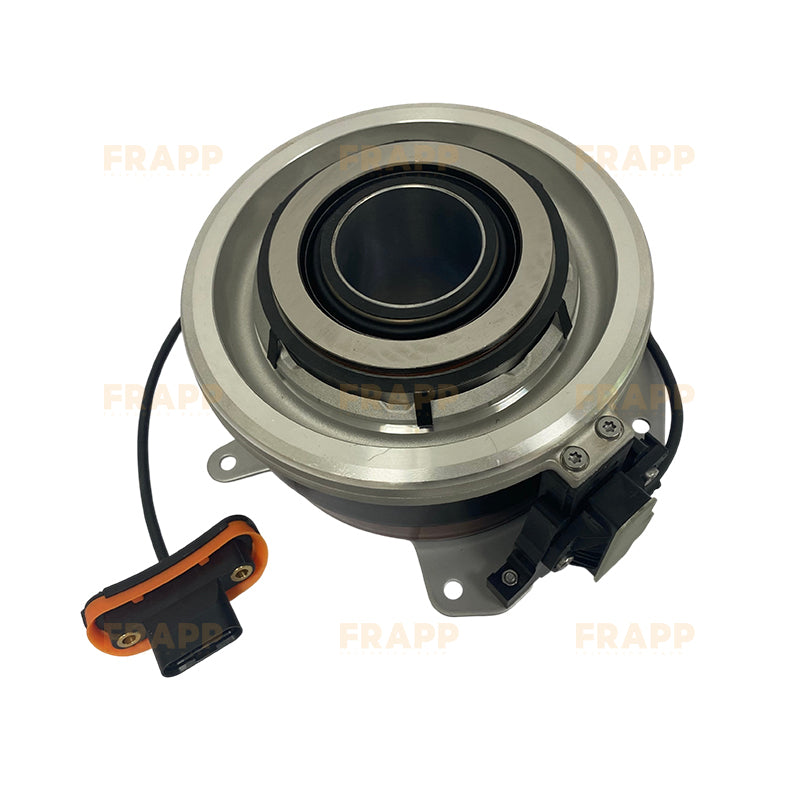

ZF TraXon AMT Clutch Concentric Pneumatic Actuator (CPCA Assembly)
Restore seamless gear shifting and precise clutch engagement with this premium AMT Clutch Central Actuator (CPCA). Fully integrated as a heavy-duty single module, this unit combines a heavy-duty clutch release bearing, a pneumatic slave cylinder, and a high-precision position sensor to manage automatic transmission shifting for long-haul Euro fleets.
📌 Key Highlights
- Official ZF SACHS Reference: Component material number 6482000203 (6482 000 203), fully certified for commercial vehicle drivetrains.
- Smart Shifting Control: Features an integrated electronic sensor and wiring plug that continuously feeds clutch travel data to the transmission ECU for dynamic clutch wear adjustment.
- Robust Mechanical Hub: Built with high-strength cast alloy housings and premium pneumatic seals to withstand intense high-frequency cycling under peak torque demands.
- Plug-and-Play Replaced: Precision-milled to mirror original equipment metrics, providing a straight-forward workshop installation slot.
🔄 Cross References & OE Match Matrix
This CPCA central actuator assembly replaces or functions interchangeably with the following industry part numbers:
- Primary Cross Numbers: 6482000216, 6482000347, 666482000357, 501221020
- Manufacturer Brand: ZF / SACHS Commercial Drivetrain Platform
- Application Gearbox: Designed specifically for ZF TraXon 12-Speed / 16-Speed Automated Manual Transmissions (AMT).
🚚 Vehicle Fitment & Vocational Suitability
| Truck Manufacturer | Model Range & Platform Application | Transmission Setup | Service Notes |
|---|---|---|---|
| MAN Trucks | TGX Series (e.g., 18.520 fleets), TGS, TGM Heavy Lineups | Equipped with original ZF TraXon AMT gearboxes. | Complete mechatronic assembly. Clutch calibration / Travel point teaching-in via diagnostic tool (e.g., ZF Testman / MANCats) is mandatory after physical installation. |
| DAF / IVECO | New DAF XF/XG/XD Fleets; IVECO S-Way Trucks | ||
| Domestic Flagships | Sinotruk SITRAK, FAW J7, Foton Auman High-HP tractors |
Workshop Tip: When renewing the clutch actuator, it is highly recommended to inspect the complete clutch kit (pressure plate and friction disc) for wear, and replace the input shaft pilot bearing to prevent premature assembly failure.
⚙️ Technical Specifications
- Product Type: AMT Concentric Pneumatic Clutch Actuator (Clutch Release Bearing Module)
- Actuation Medium: Compressed Air (Pneumatic System via central solenoid block)
- Electrical Connector: Integrated Multi-pin Sealed Wiring Plug (Position sensor feedback)
- Condition: 100% Brand New Premium Aftermarket Replacement
